Paper Cup Sleeve Machine,120pcs/min automatic paper cup sleeve machine,double PE coat
Specification
| MODEL | Paper Cup sleeve machine SMD-80A |
| SPEED | 100-120PCS/MIN |
| CUP SIZE | 6-46OZ |
| MATERIAL | 135-450GRAM |
| CONFIGURATION | ULTRASONIC&HOT AIR |
| OUTPUT | 10KW,380V/220V,60HZ/50HZ |
| AIR COMPRESSOR | 0.4 M³/Min 0.5MPA |
| NET WEIGHT | 3.0TONS |
| MACHINE SIZE | 2500 ×1800 ×1700 MM |
| COUNTER SIZE | 900 ×900 ×1760 MM |
Description
Paper Cup Sleeve machine is great thermal insulation container.
Our company developed fast speed double wall paper Cup machine, using Gear working, it has better promotion for noise,speed,stability .
Whole Process
Double wall paper deliver →Double wall Cup forming →Paint Oil on paper bottom→Cup outside Bottom curl→Outside
Cup paint glue inside→Inside Cup drop→Cup tight part→compact the finished cup
Application

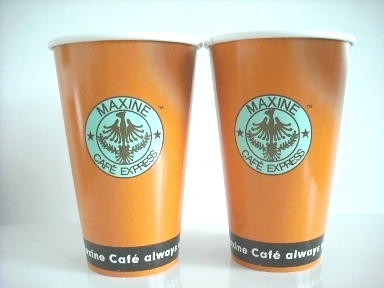

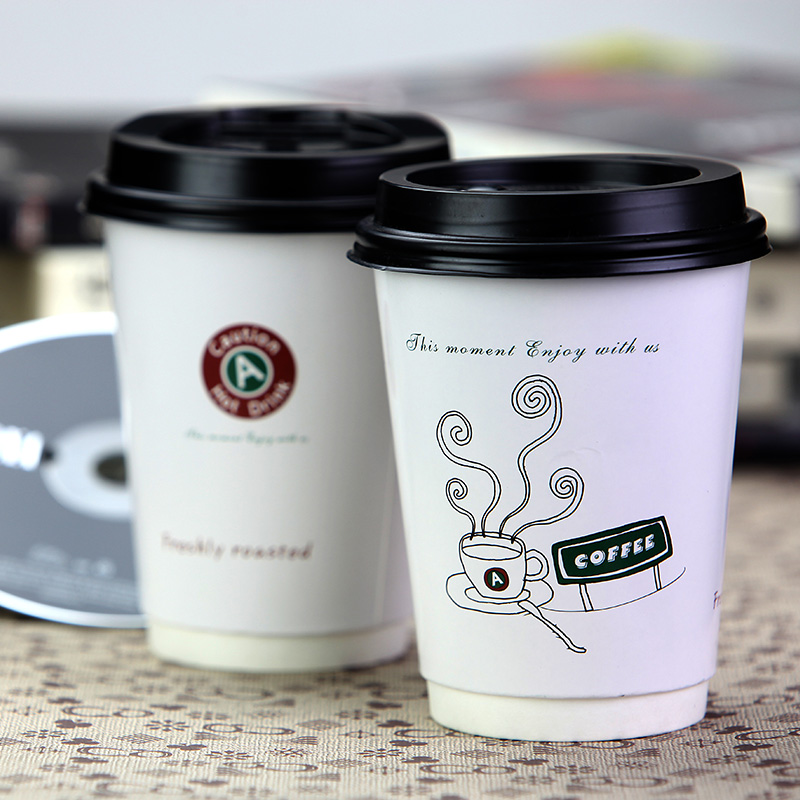

Produce for Coffee Cup.Paper Cup sleeve.
Machine Detail
Servo motor: Two set of servo motor, the advantage of servo motor is that high accuracy of runningstation. In this machine, one for white glue vending,no waste for glue. Another one for inner papercup delivery, in right position.
Safe door: Set up safe door and security button. Keep safe. Two type of design can be selected.
Introduce
Paper Cup Sleeve Machine each action for paper cup making independent function.The so-called debugging is realizing the function of reservation components in a reasonable, therefore all sales to
Customer equipment, our company has finished debugging already. if there is any place in running the project change, need to be completely familiar with and master the medium-speed charter flights outside the performance, structure, principle, and commissioning.If special circumstances, should contact with the company.
FAQ
1. Q: If This Machine can Connect with the Fast paper Cup machine?
A: Yes.and they can work together, only one worker can finish the Double wall Cup job.
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !
3. Q:How does your factory do regarding quality control?
A: Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end: 1). All raw material we used are environmental-friendly; 2). Skilful workers care every details in handling the producing and packing processes; 3). Quality Control Department specially responsible for quality checking in each process.
